Low Pressure Vertical Hot Melt Adhesive Glue Injection Molding Machine LPMS for PCB JTT-100DL
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | JINTONG |
| Certificering: | CE |
| Modelnummer: | JTT-100DL |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 ST |
|---|---|
| Prijs: | USD7500-8500 |
| Verpakking Details: | Multiplex behuizing |
| Levertijd: | 15 dagen |
| Levering vermogen: | 50 stuks/maand |
|
Gedetailleerde informatie |
|||
| Voorwaarde: | Nieuw | Kleur: | Grijs |
|---|---|---|---|
| Automatisch: | Semi | kunststof soort: | smeltlijm |

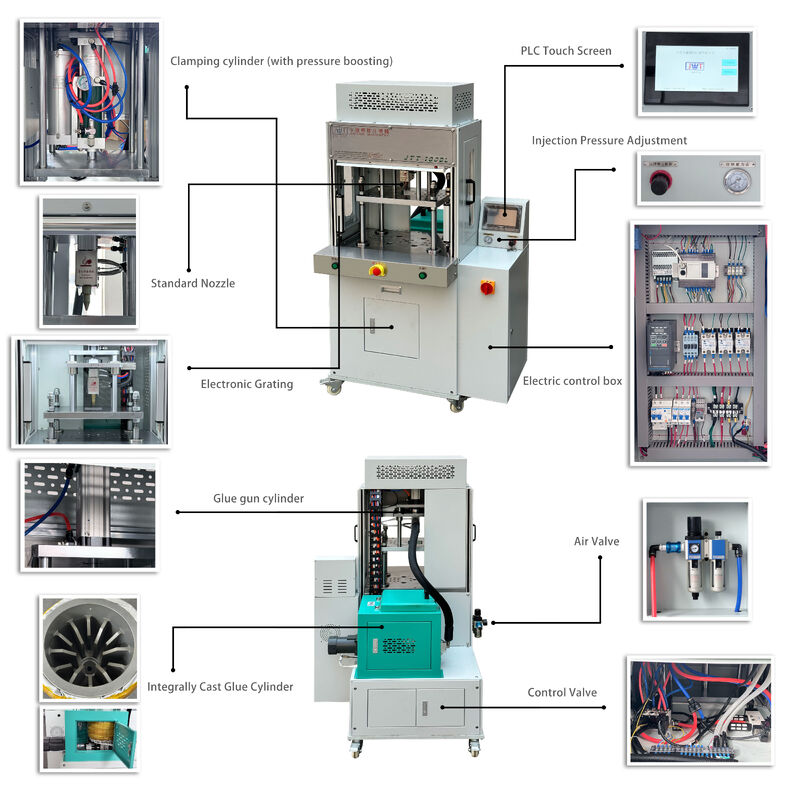

Productomschrijving
- Clamping Force: 1-10T
- Melting cylinder offer material
- Vertical injection system, vertical clamping system.
- Integrated melting tank with machine Hot melt adhensive begins from gear pump, pass valves to nozzle
- Nozzle connected to melting tank, injection unit back and forward by air.
- Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
- Equipped with Eject system driven by air cylinder Two PID thermal temperature control zones (Melting tank and nozzle) Two tie bar design for molding small parts, operation easily.
- 220V single phase voltage, Energy saving, low pollution and no oil leakage risk
